TASCAM Sonicview 16/24 with IF-ST2110
SMPTE ST 2110 compliant Digital Mixer & Interface card combination
The TASCAM Sonicview / ST2110 Bundles are the one-and-only compact digital mixer and interface card combinations offering an affordable price with full support for the SMPTE ST 2110 AV networking standard. Access to 64 input and output audio channels is provided, with full network redundancy compliant with the SMPTE ST 2022-7 SMPTE standard—including support for NMOS, AES67 and SAP.
Lineup
-
The TASCAM Sonicvew 24 Combination:
TASCAM Sonicview 24
IF-ST2110 -
The TASCAM Sonicvew 16 Combination:
TASCAM Sonicview 16
IF-ST2110
64 In/64 Out Audio Transmission and Independent Control Ports
Up to 64 In/64 Out (48kHz), 32 In/32 Out (96kHz) capability for audio transmission
2 Media Ports and Independent Control Ports
2 media ports provide audio stream capability including SMTPE ST 2022-7 compliant redundancy. The independent control port allows set-up, modification, and monitoring. By using a dedicated IF-ST2110 processing card system reliability and stability is insured.
WebUI application included
The IF-ST2110 card includes a companion built-in Web UI application that allows users to configure and monitor the IF-ST2110 using a Web browser.

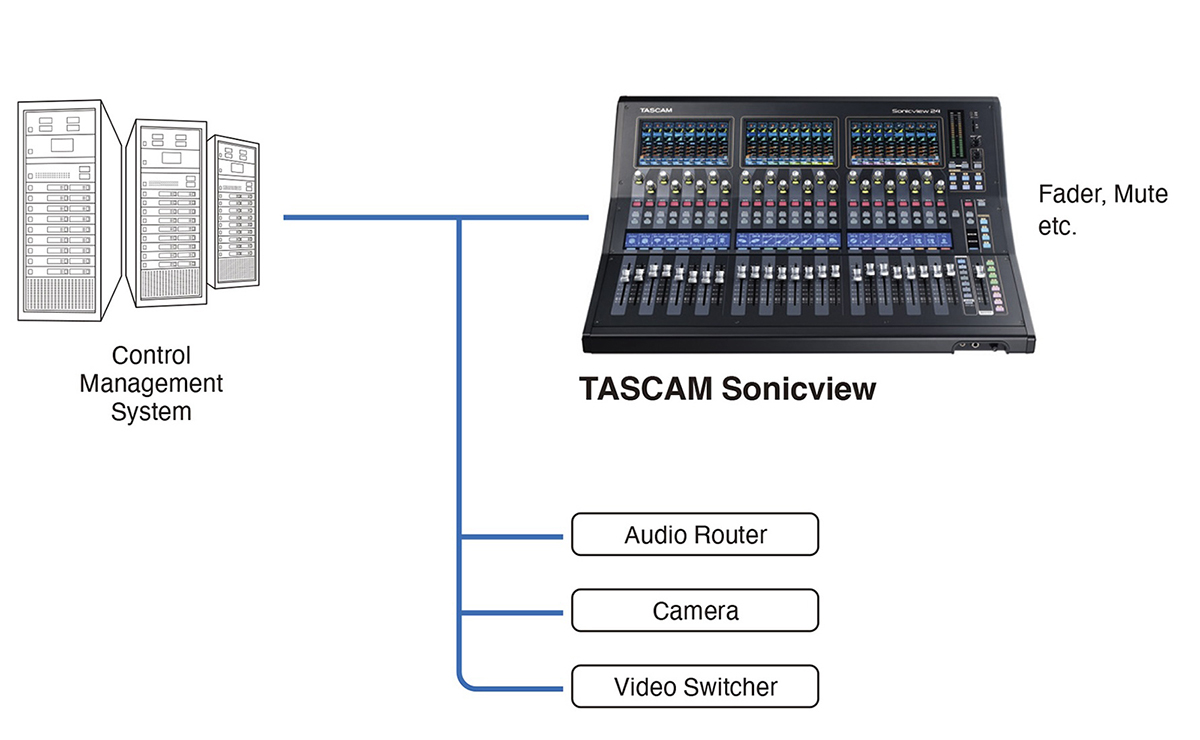

Ember+ supported
Compatible with the Ember+ protocol, a versatile protocol in the broadcast market, a ASCAM Sonicview Digital Mixer can be controlled and monitored.
* Use the Ethernet port on the TASCAM Sonicview main unit for Ember+.

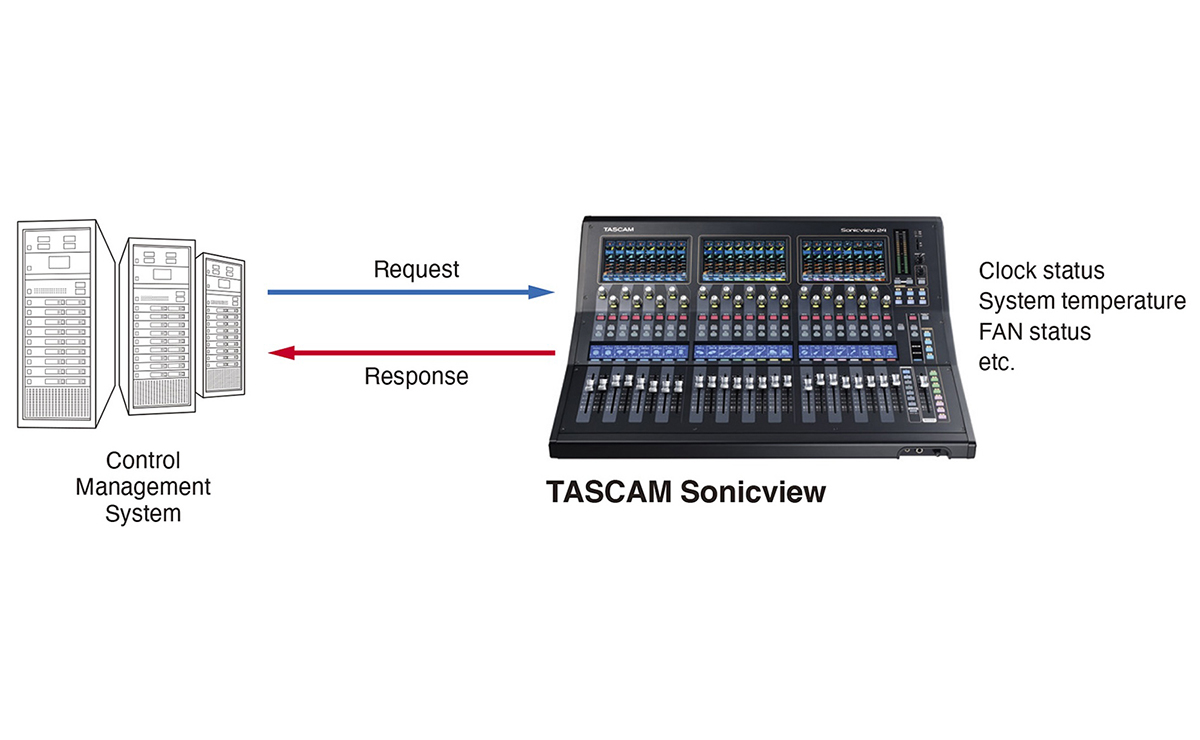

SNMP supported
The TASCAM Sonicview supports SNMPv1 and SNMPv2, allowing monitoring of the unit over the network.
Applications: IP studio system in Broadcast
Applications: Remote Production
Applications: OB Vehicle
Features at a Glance
- Compliant with ST2110-30/31 and AES67 standards
- 64 In/64 Out (48kHz), 32 In/32 Out (96kHz) audio transmission
- Redundancy (ST2022-7 compliant)
- NMOS IS-04/05
- Equipped with media stream and independent control ports
- - 2 media ports (PORT 1 and PORT 2)
- - 1 Control port (CONTROL)
- WebUI app included for control including point-to-point connection capability
- Ember+
- SNMP
